How to Prevent Moisture and Mold Issues During Your Basement Renovation

It comes down to the soil and the temperature swings. Alberta's clay-heavy soil holds water and expands when it freezes. That puts hydrostatic pressure on your foundation walls, which over time can cause small cracks - and water finds every single one of them.

On top of that, warm indoor air in winter naturally carries moisture. When that air hits a cold concrete wall, it condenses. You might not even see it happening, but over weeks and months, that condensation is soaking into your insulation, your framing, your drywall. By the time you notice a problem, mold is already well established.

One thing I always tell homeowners: the renovation itself isn't the hard part. The hard part is figuring out where the water is coming from before you build anything.

Before any framing goes up, before a single piece of insulation gets stapled in, you need to know the current state of your foundation. Look for:

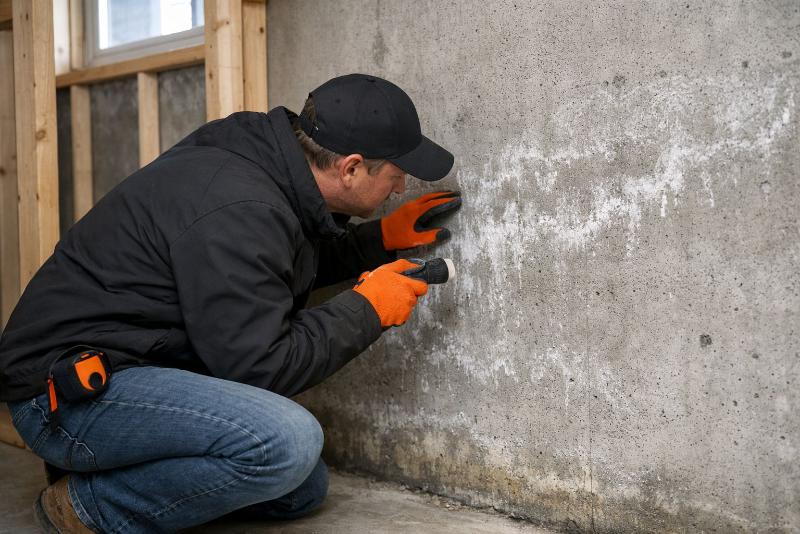

• Efflorescence - that white, chalky residue on concrete walls. It means water has been moving through.
• Staining or discolouration along the base of walls or on the floor.
• Any visible cracks, even hairline ones.
• Soft or spongy spots in any existing subfloor material.

If you're seeing any of these, that's your signal to stop and address the source before doing anything else. Covering a wet wall with insulation and drywall doesn't fix moisture - it just gives it somewhere dark and warm to create mold.

Interior vs. Exterior Waterproofing

There are two approaches to waterproofing basement walls, and they're not interchangeable.

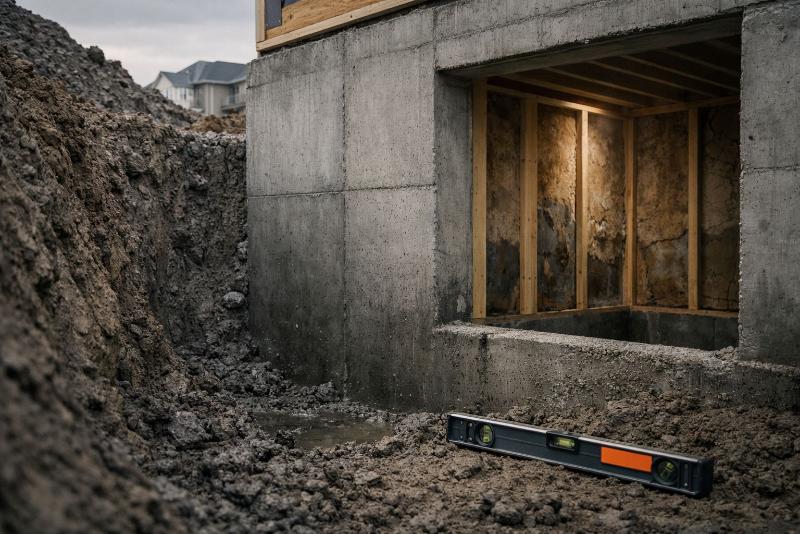

Exterior waterproofing is the gold standard. It involves excavating around the foundation and applying a waterproof membrane directly to the outside of the wall. This stops water before it ever gets to your concrete. It's more disruptive and more expensive, but for homes with serious water intrusion issues, it's often the only long-term solution.

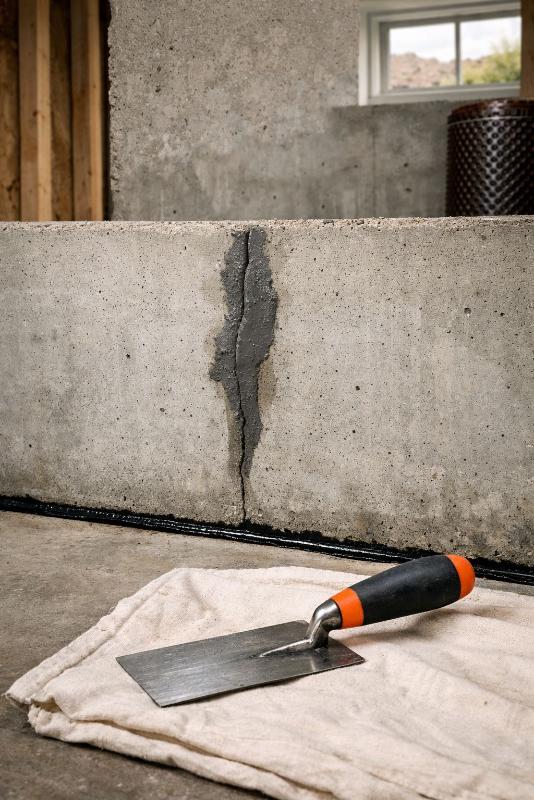

Interior waterproofing is more common for finished basements. It typically involves applying a concrete sealer or masonry waterproofing compound to the inside face of the wall. Products like hydraulic cement can be used to plug active cracks and leaks. This approach manages water that's already gotten through the wall rather than stopping it at the source, so it works best when the intrusion is minor to moderate.

For most basement renovation in Calgary projects we take on, a combination approach tends to work well - seal any visible cracks, apply an interior waterproofing membrane or coating, and make sure the drainage situation outside is handled properly.

Don't Forget the Floor-to-Wall Joint

This is a spot that gets overlooked all the time. The joint where your foundation floor meets your foundation wall is a common entry point for water, especially when hydrostatic pressure builds up after heavy rain or spring thaw. Applying a flexible waterproof sealant along this joint before you frame anything is a simple step that makes a real difference.

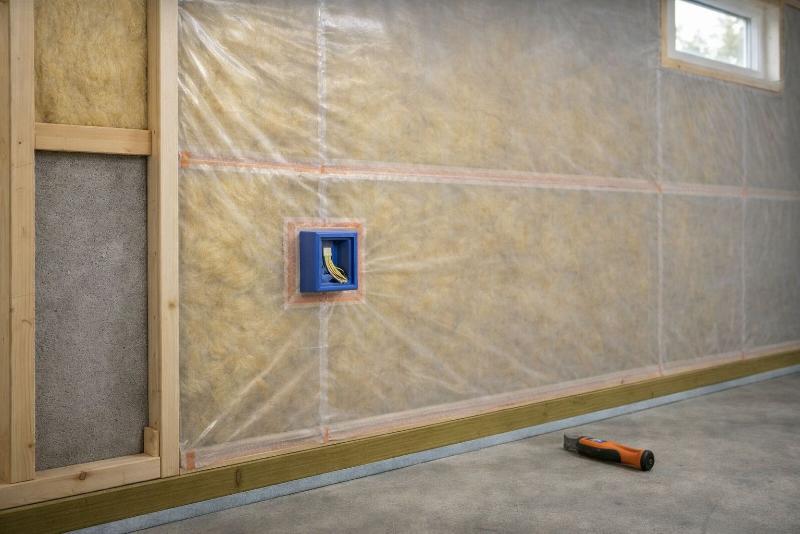

A vapor barrier is exactly what it sounds like - a plastic sheet (usually 6-mil poly) that blocks moisture vapor from passing through walls and into your living space. In a Calgary basement, this goes between your concrete wall and your insulation.

The correct installation sequence is: waterproofing on the wall, then rigid foam insulation (more on that below), then your framing, then batt insulation between studs, and then a vapor barrier before the drywall goes up.

One thing worth paying attention to here: the vapor barrier needs to be continuous. Tears, gaps around electrical boxes, and poorly taped seams all create pathways for moisture. It seems like a small thing, but sloppy vapor barrier installation is behind a lot of mold problems we see in finished basements.

Not all insulation is created equal when it comes to basement moisture management. Standard fiberglass batt insulation, while fine for above-grade walls, is a poor choice for direct contact with concrete. It absorbs moisture readily and doesn't dry out well. Once it gets wet, mold growth is almost inevitable.

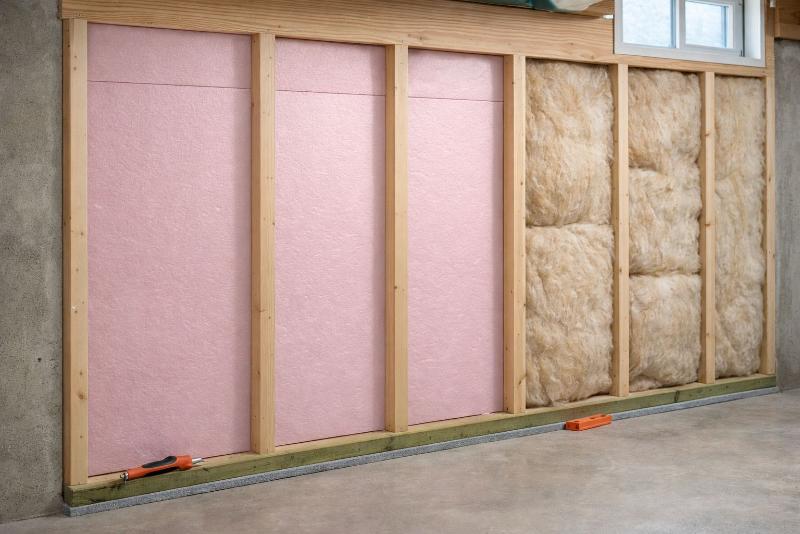

The better approach for the stud cavity closest to the concrete is rigid foam board insulation - either extruded polystyrene (XPS) or closed-cell spray foam. Both are moisture-resistant, don't support mold growth, and provide a thermal break between the cold concrete and your warm interior framing.

Spray foam has the added advantage of sealing air gaps at the same time, which further reduces condensation risk. It's more expensive than rigid board, but for problem areas or particularly cold zones in the basement, the investment is often worth it.

Grading and Exterior Drainage

This one's basic, but it's amazing how often it gets missed. The ground around your foundation should slope away from the house - ideally a minimum of 6 inches of drop over the first 10 feet. If it's flat or slopes toward the house, every rainfall is directing water right to your foundation.

Check your downspout extensions too. Extensions should carry water at least 6 feet away from the foundation before discharging. Short or missing extensions are a very common cause of basement moisture issues in Calgary neighbourhoods.

Interior Drainage Systems

If your basement has recurring water intrusion despite exterior measures, an interior drainage system might be the right solution. This involves installing a perforated drain tile around the perimeter of the basement floor, below the slab, that channels water to a sump pit.

Which brings us to sump pumps.

Sump Pump Installation

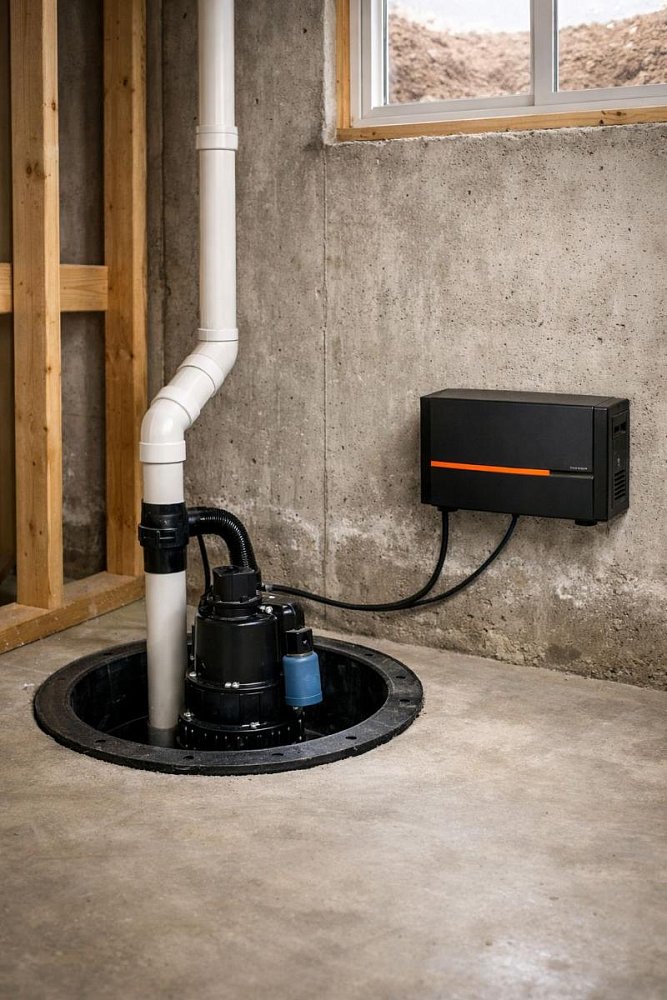

A properly sized and installed sump pump is one of the most reliable tools for keeping a basement dry in Calgary. The pump sits in a pit at the lowest point of the basement, and when water accumulates, it pumps it up and out through a discharge line to a safe distance from the house.

A few things to keep in mind:

• Battery backup is worth it. If your power goes out during a storm - which is when you most need the pump running - a battery backup keeps it going.
• Check the discharge location. It needs to drain away from the foundation and not just re-enter the soil around your home.
• Sump pumps have a lifespan. If you're buying an older home and the pump hasn't been replaced in 10 years, budget for a new one.

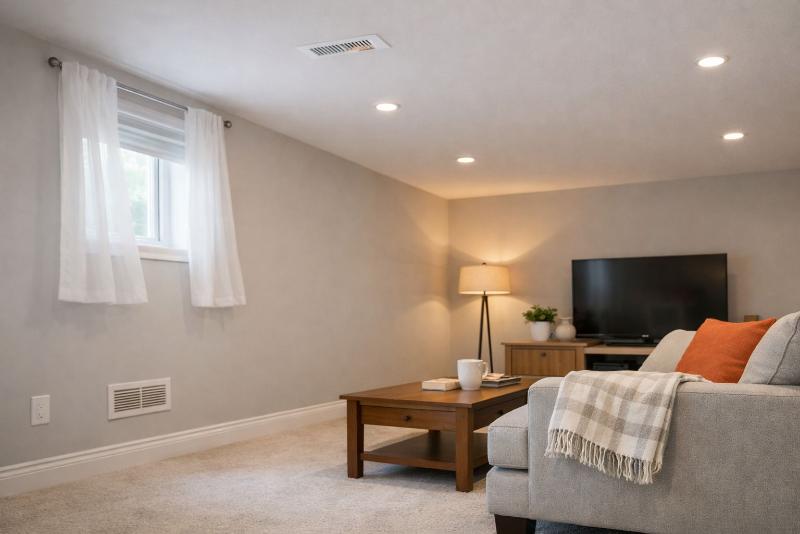

Even with great waterproofing and insulation, a finished basement needs proper ventilation to stay healthy. Basements are naturally lower in air circulation than the rest of the house, and stagnant air with any moisture present is exactly where mold thrives.

A good HVAC setup should include the basement in its ventilation path. If your system doesn't reach the basement well, supplemental ventilation fans can help. The goal is to keep relative humidity in the basement below 50%. A hygrometer - a small device that measures humidity - is an inexpensive tool to keep down there so you can monitor things.

For basements that struggle with persistent humidity, a dedicated dehumidifier is often the most practical solution. Pair it with a drain hose that empties into a floor drain or laundry tub and you don't have to think about it much.

And of course, any bathroom or laundry room in the basement needs its own exhaust fan that vents outside - not just into the ceiling space. This is a code requirement, but also just common sense.

There's a lot that experienced homeowners can handle themselves - painting, some finish work, basic landscaping for grading. But when it comes to foundation sealing, waterproofing membrane installation, drainage systems, and structural insulation, the stakes are high enough that mistakes can be very expensive to fix later.

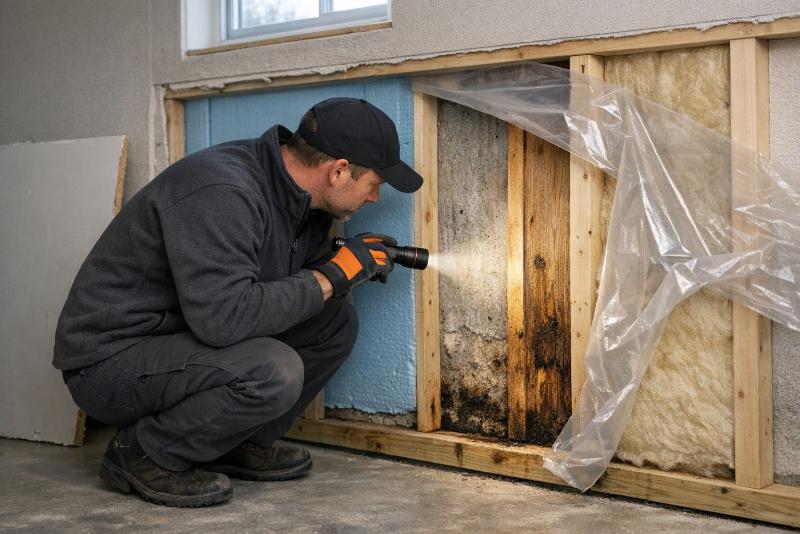

We've been called in to renovate spaces where a previous contractor or a well-intentioned homeowner skipped steps on the waterproofing. By the time they called us, there was mold behind the drywall, damaged framing, and sometimes compromised subfloor material. The cost to remediate and rebuild was significantly more than the original job would have been done right.

If you're planning a basement renovation in Calgary and you're not 100% sure about the moisture situation, getting a professional assessment before you start is simply the smart move. It's not about writing cheques - it's about protecting the investment you're about to make in your home.
